Conveyor Rubber Belt Splice Press Hot Joint Vulcanizer.
1.High Strength And Light Weight Cross Beam, it will not deform when the maximum pressure is reached.
2.Silicone Heating Blanket and Rubber Pressure Bag.
3.Pressure And Cooling By Water.
Welcome to contact:WhatsApp +8615064205346 Email [email protected]

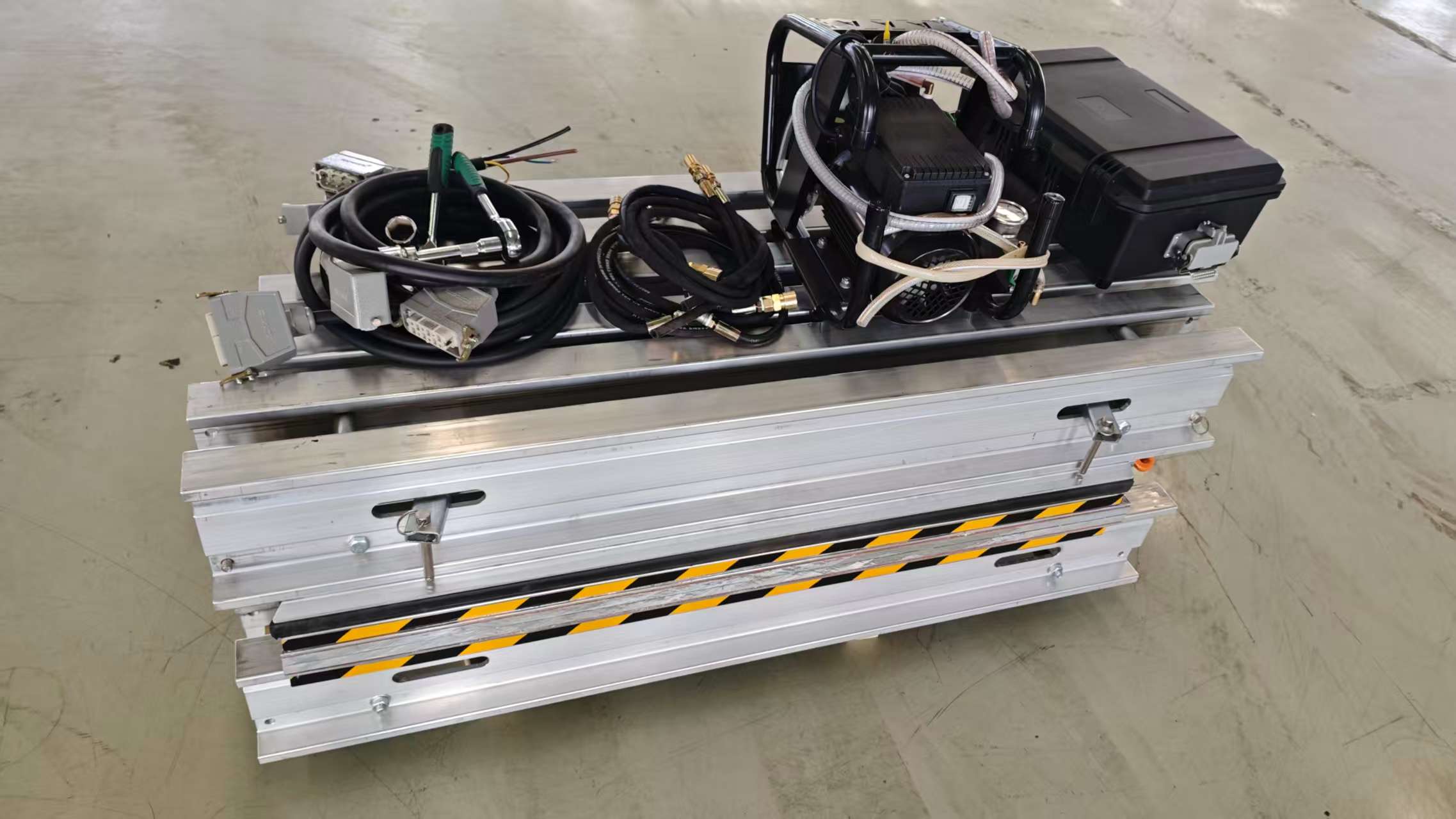

Conveyor Belt Vulcanizing Press
(Model: S3VP-1820*1500)
| No. | Description | |
| 1 | Rubber Conveyor Belt Vulcanizing Press | 1 set |
| 2 | Model | SV3P-1820*1500 |
| 3 | Belt Width | 1600mm |
| 4 | Heating platen bias | 17 Degree |
| 5 | Pressure Transmitting Medium | By water |
| 6 | Recommended Working Temperature | 145℃ |
| 7 | Temperature Difference of Platen Surface (℃ ) | ±5℃ |
| 8 | Temperature Rising Time (Normal temperature to 145℃) | ≤25min |
| 9 | Temperature Adjustable Range (℃) | 0-200℃ |
| 10 | Timing Adjustable Range | 0-99min |
| 11 | Platen Size | 1820*500mm |
| 12 | Gross Weight | Approx.1480kgs |
| 13 | Packing Size | 3000*1550*800mm |
| 14 | Voltage | 380V/50HZ/3PH |
| 15 | Recommended Working Pressure | 8 Bar |
| 16 | Power | 7.2kw |
| 17 | Optional Accessories | With belt clamping device |
| 18 | Main Frame | Aluminum Alloy,6 groups of EAX
267 mm beam |
